1.1 Features & Applications

SCS Serial all-electronics truck weigher and scale designed and made by Xingtai Degang Electronics Co., Ltd. Have the features of quick and accurate weighing, digital display, direct reading, reliable and easy maintenance, etc. which are widely trusted by the customers.

SCS serial scales are furnished with reliable high-precision weighing sensor and intelligence instrument for weight display, which has high sensitivity, high resolution, rich software function and stable operation. The weighing data can be printed out through standard output interface and can be also connected with computer to form a weighing management system.

Reasonable design of the configuration of scales and pitless/shallow pit installation form make the installation and maintenance easy and convenient.

SCS serial all-electronics truck weigher and scale is applicable for the weight measuring of port, airport, mining, metallurgy, material warehouse and plants.

1.2   Specifications & Models

1.2.1  Meaning of model

S C S --- □□

S --- Classification of scale__truck weigher and scale

C --- Load transfer structure__ sensor

S --- Digital display

□□ --- Max. weight (t)

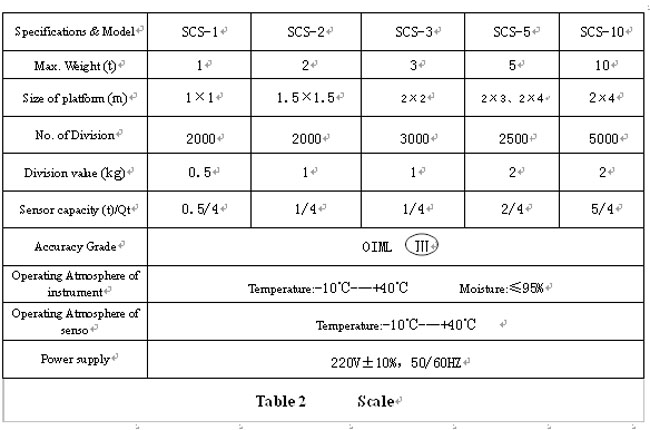

1.2.2        Main parameters (see table 1 and 2)

l  The size of platform can be designed according to the user’s requirement.
